DY 50

/

DY50-127/4H-3/4-16UNF

DY50-127/4H-3/4-16UNF

Agricultural machinery bearings

Contact us

Model exchange

OEM

IL50-127/4H-3/4-16UNF

Product information

Technical information

CAD

Download

Reduce

Amplify

Unit display /

Metric system

British system

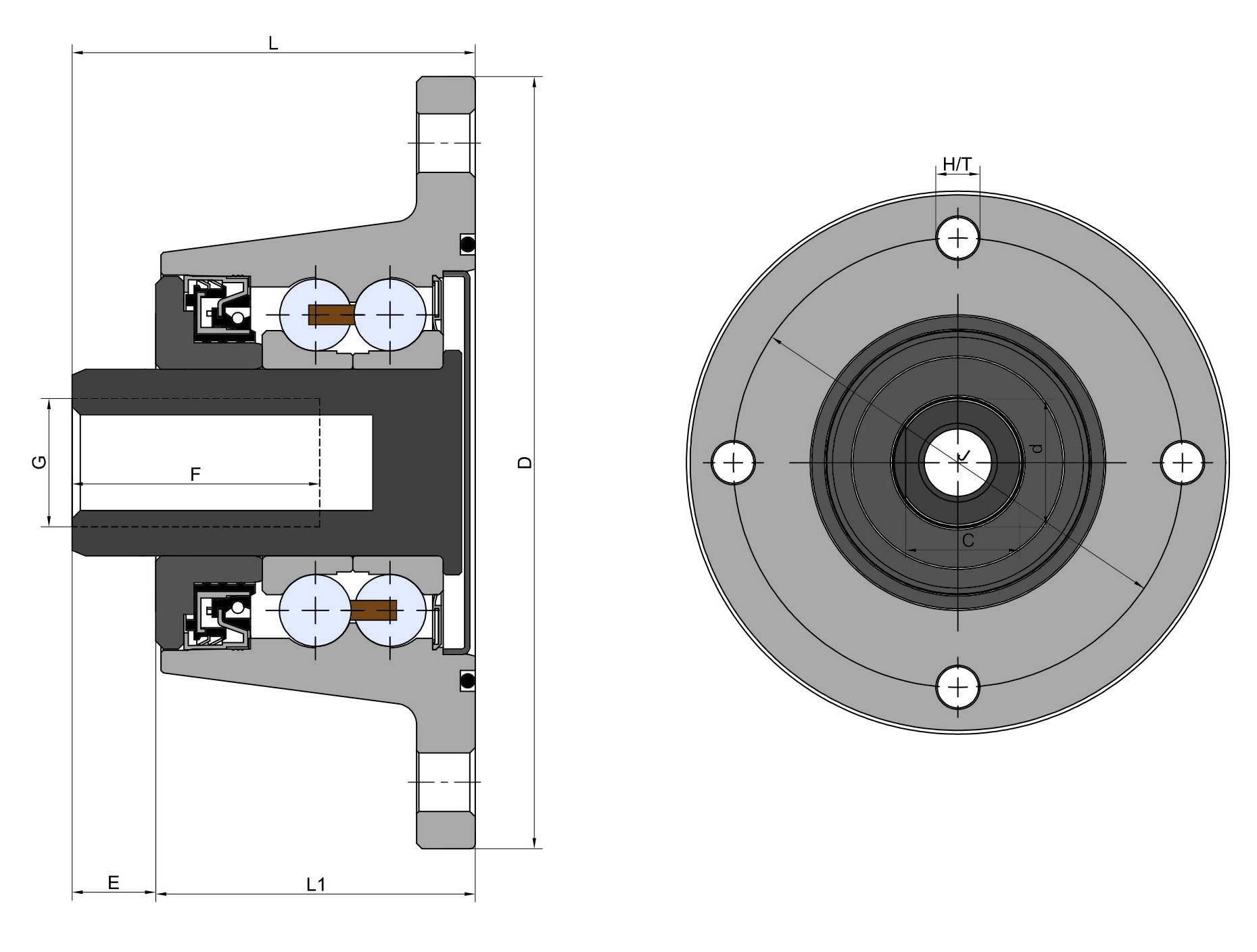

Main dimensions and performance parameters

J

Pitch circle diameter

Need Login visible size，sing in

D

145mm

Outside diameter

H/T

4x13.5

Hole/Thread

d1

31.8mm

Bore diameter

C

29mm

D-shape hole cut out dimension

G

3/4”–16UNF

Internal Thread

L

71.5mm

Total length

L1

60mm

Total flange length

E

11.5mm

Length of D shape

F

38.1mm

Length of threaded part

≈m

2.82kg

weight

Cor

60kn

Radial dynamic load rating

Cr

45.8kn

Radial static load rating

Pu

1.92kn

Fatigue load limit

J

Pitch circle diameter

Need Login visible size，sing in

D

5.709in

Outside diameter

H/T

4x13.5

Hole/Thread

d1

1.252in

Bore diameter

C

1.142in

D-shape hole cut out dimension

G

3/4”–16UNF

Internal Thread

L

2.815in

Total length

L1

2.362in

Total flange length

E

0.453in

Length of D shape

F

1.500in

Length of threaded part

≈m

2.82kg

weight

Cor

60kn

Radial dynamic load rating

Cr

45.8kn

Radial static load rating

Pu

1.92kn

Fatigue load limit

Download this product

Download the product feature description

Your current product features

Sealing method

0

Lubrication method for outer ring

0

Locking method

0

Tightening screw style

0

Assembly method

0

Grease

0

Outer Ring Style

0

Layer

0
