UCFL 205-15 F

FL-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

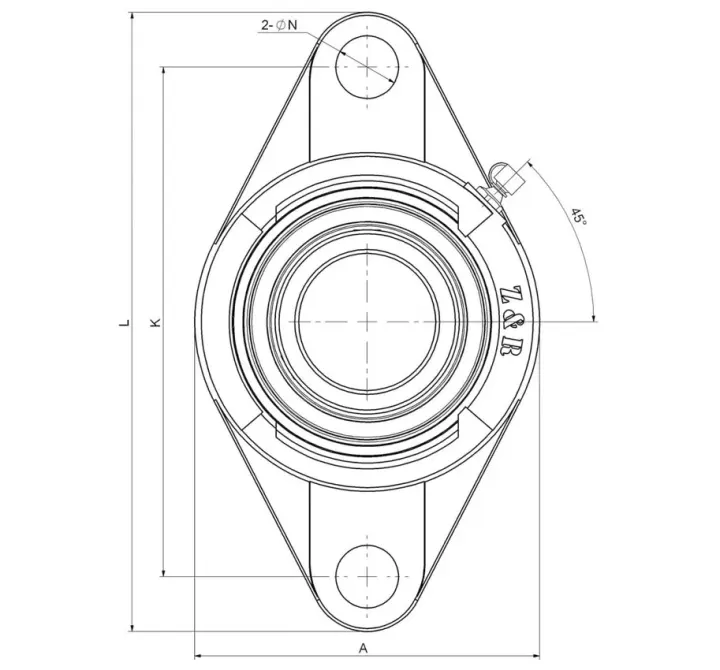

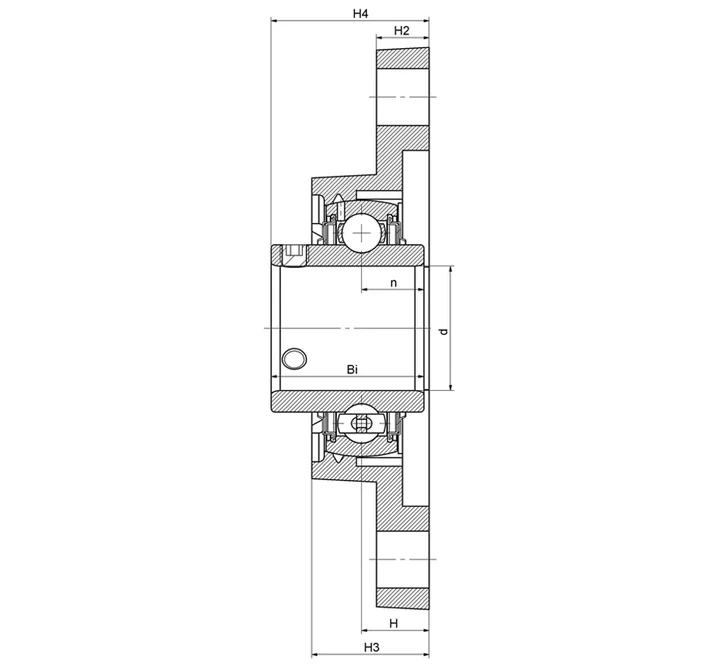

Main dimensions and performance parameters

22.225mm

Inside diameter

11mm

Bearing seat height

13mm

Center height

18mm

Distance from oil hole to ground

27mm

Bearing height

130mm

Overall length

99mm

Fixed hole distance

68mm

Base width

14.3mm

channel distance

37mm

Total width

M10

Bolt size

≈m

0.42Kg

weight

UC 205-15

Bearing Type

FL205-15

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

0.875in

Inside diameter

0.433in

Bearing seat height

0.512in

Center height

0.709in

Distance from oil hole to ground

1.063in

Bearing height

5.118in

Overall length

3.898in

Fixed hole distance

2.677in

Base width

0.563in

channel distance

1.457in

Total width

M10

Bolt size

≈m

0.42Kg

weight

UC 205-15

Bearing Type

FL205-15

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
