UCFL 206-19 F

FL-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

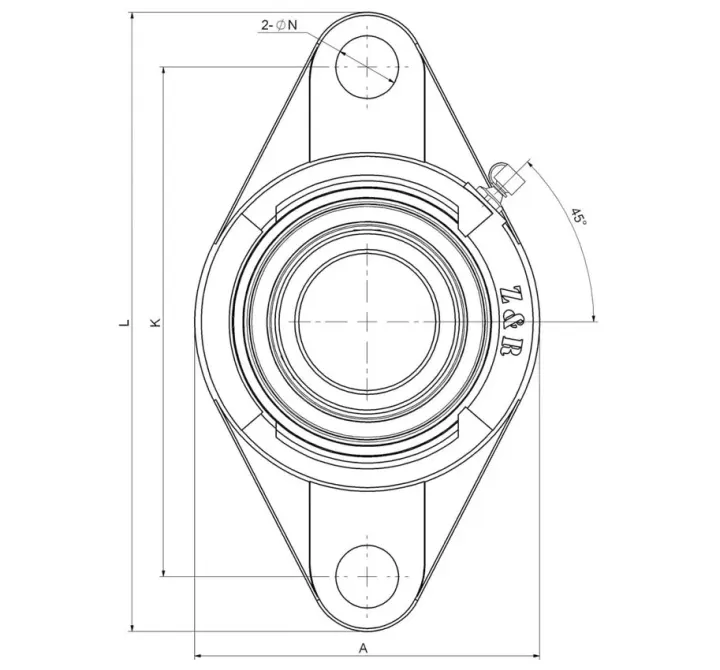

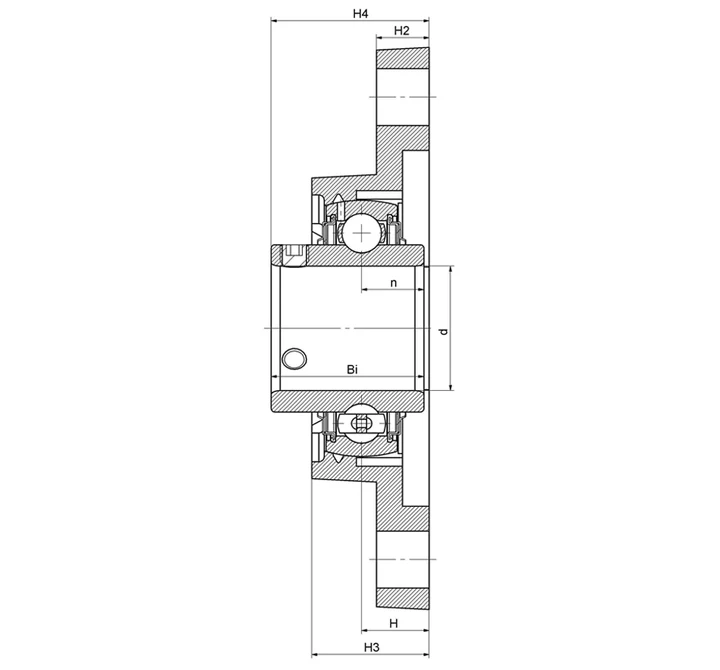

Main dimensions and performance parameters

30.1625mm

Inside diameter

11mm

Bearing seat height

13mm

Center height

20.5mm

Distance from oil hole to ground

31mm

Bearing height

148mm

Overall length

117mm

Fixed hole distance

80mm

Base width

15.9mm

channel distance

38.1mm

Total width

M10

Bolt size

≈m

0.59Kg

weight

UC 206-19

Bearing Type

FL206-19

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

1.188in

Inside diameter

0.433in

Bearing seat height

0.512in

Center height

0.807in

Distance from oil hole to ground

1.220in

Bearing height

5.827in

Overall length

4.606in

Fixed hole distance

3.150in

Base width

0.626in

channel distance

1.500in

Total width

M10

Bolt size

≈m

0.59Kg

weight

UC 206-19

Bearing Type

FL206-19

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
