UCFL 209-28 F

FL-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

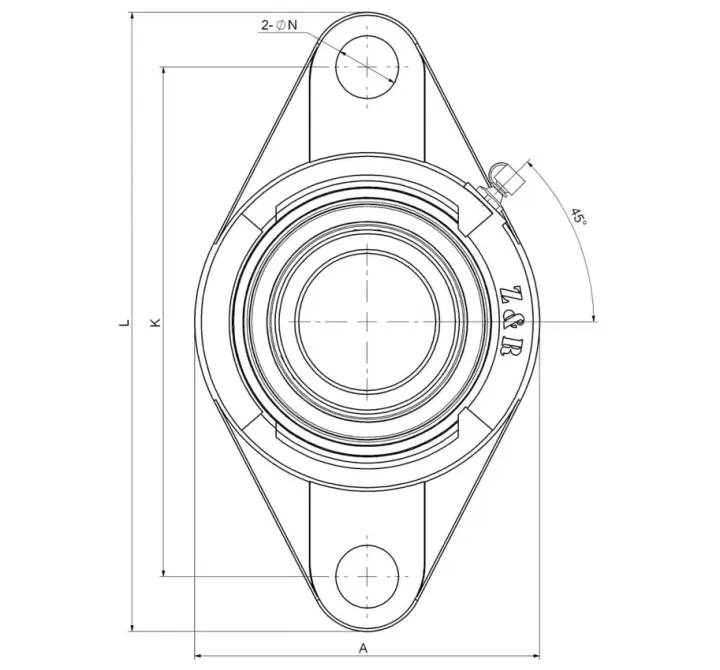

Main dimensions and performance parameters

44.45mm

Inside diameter

13mm

Bearing seat height

15mm

Center height

26mm

Distance from oil hole to ground

38mm

Bearing height

188mm

Overall length

148mm

Fixed hole distance

108mm

Base width

19mm

channel distance

49.2mm

Total width

M16

Bolt size

≈m

1.17Kg

weight

UC 209-28

Bearing Type

FL209-28

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

1.750in

Inside diameter

0.512in

Bearing seat height

0.591in

Center height

1.024in

Distance from oil hole to ground

1.496in

Bearing height

7.402in

Overall length

5.827in

Fixed hole distance

4.252in

Base width

0.748in

channel distance

1.937in

Total width

M16

Bolt size

≈m

1.17Kg

weight

UC 209-28

Bearing Type

FL209-28

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
