UCFL 210-32 F, UCFL 210-32 bearing offered by China manufacturer Zhongda (Hebei) Bearing Manufacturing Co., Ltd.. Buy UCFL 210-32 bearing directly with low price and high quality -Zhongda (Hebei) Bearing Manufacturing Co., Ltd.

Home

Product center

Mounted unit

FL Type Seat Bearings

UCFL series bearings

UCFL 210-32 F

FL-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

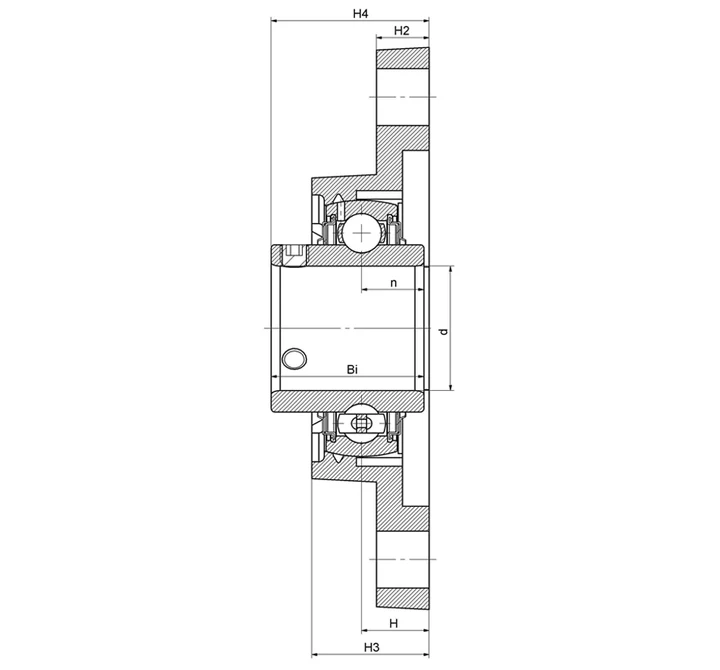

Main dimensions and performance parameters

50.8mm

Inside diameter

13mm

Bearing seat height

15mm

Center height

26.2mm

Distance from oil hole to ground

40mm

Bearing height

197mm

Overall length

157mm

Fixed hole distance

115mm

Base width

19mm

channel distance

51.6mm

Total width

M16

Bolt size

≈m

1.41Kg

weight

UC 210-32

Bearing Type

FL210-32

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

2.000in

Inside diameter

0.512in

Bearing seat height

0.591in

Center height

1.031in

Distance from oil hole to ground

1.575in

Bearing height

7.756in

Overall length

6.181in

Fixed hole distance

4.528in

Base width

0.748in

channel distance

2.031in

Total width

M16

Bolt size

≈m

1.41Kg

weight

UC 210-32

Bearing Type

FL210-32

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
