UCFL 211-14 F, UCFL 211-14 bearing offered by China manufacturer Zhongda (Hebei) Bearing Manufacturing Co., Ltd.. Buy UCFL 211-14 bearing directly with low price and high quality. -Zhongda (Hebei) Bearing Manufacturing Co., Ltd.

Home

Product center

Mounted unit

FL Type Seat Bearings

UCFL series bearings

UCFL 211-14 F

FL-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

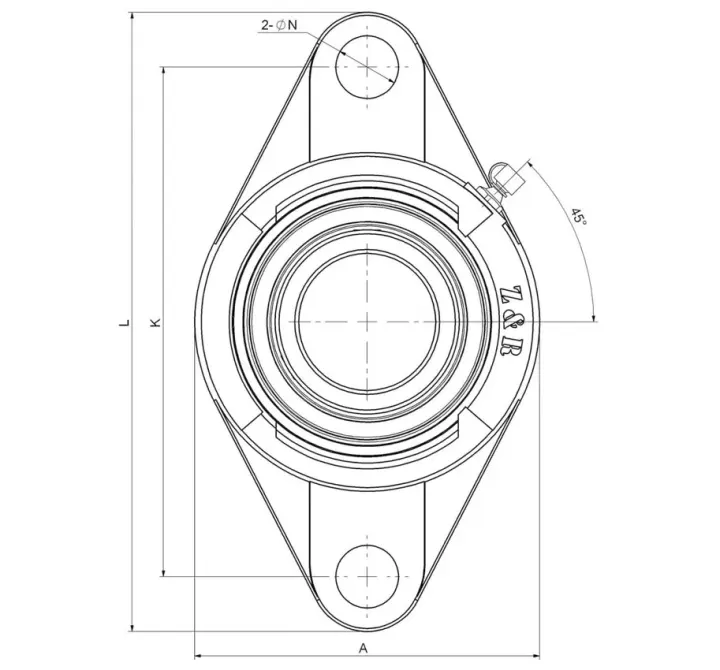

Main dimensions and performance parameters

53.975mm

Inside diameter

15mm

Bearing seat height

18mm

Center height

29.8mm

Distance from oil hole to ground

43mm

Bearing height

224mm

Overall length

184mm

Fixed hole distance

130mm

Base width

22.2mm

channel distance

55.6mm

Total width

M16

Bolt size

≈m

1.97Kg

weight

UC 211-34

Bearing Type

FL211-34

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

2.125in

Inside diameter

0.591in

Bearing seat height

0.709in

Center height

1.173in

Distance from oil hole to ground

1.693in

Bearing height

8.819in

Overall length

7.244in

Fixed hole distance

5.118in

Base width

0.874in

channel distance

2.189in

Total width

M16

Bolt size

≈m

1.97Kg

weight

UC 211-34

Bearing Type

FL211-34

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
