UCFL 212-38 F

FL-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

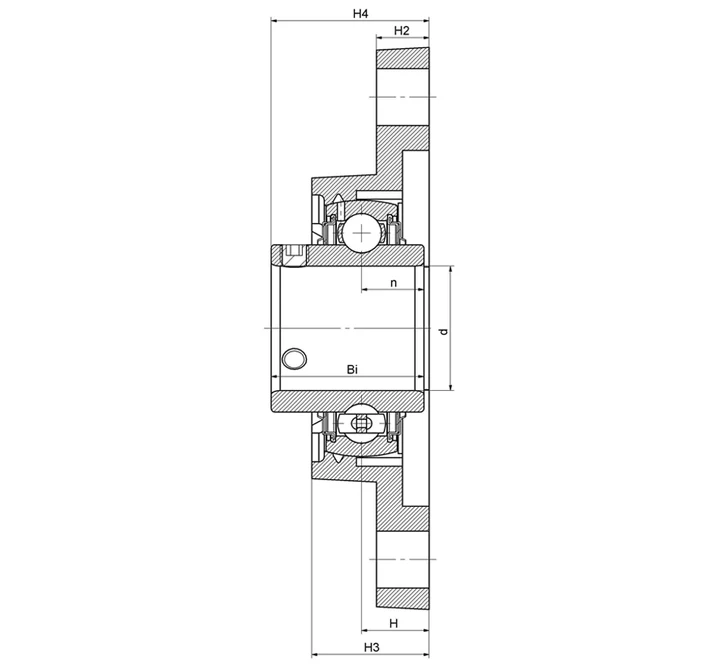

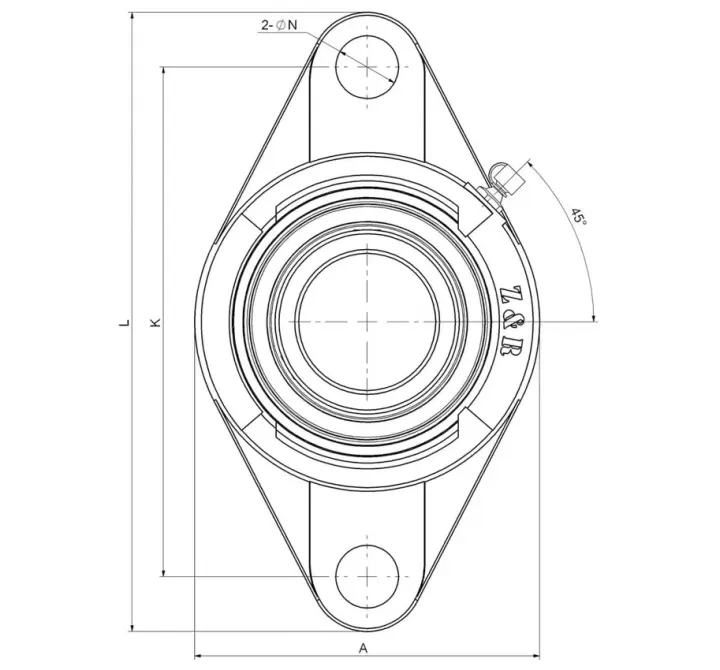

Main dimensions and performance parameters

60.325mm

Inside diameter

15mm

Bearing seat height

18mm

Center height

34.3mm

Distance from oil hole to ground

48mm

Bearing height

250mm

Overall length

202mm

Fixed hole distance

140mm

Base width

25.4mm

channel distance

65.1mm

Total width

M16

Bolt size

≈m

2.53Kg

weight

UC 212-38

Bearing Type

FL212-38

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

2.375in

Inside diameter

0.591in

Bearing seat height

0.709in

Center height

1.350in

Distance from oil hole to ground

1.890in

Bearing height

9.843in

Overall length

7.953in

Fixed hole distance

5.512in

Base width

1.000in

channel distance

2.563in

Total width

M16

Bolt size

≈m

2.53Kg

weight

UC 212-38

Bearing Type

FL212-38

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
