UCF 204-12 F

F-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

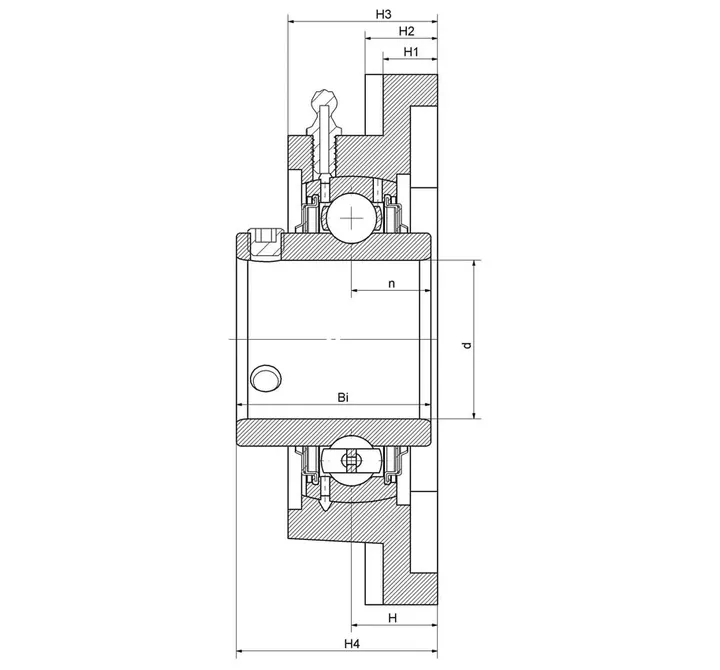

Main dimensions and performance parameters

19.05mm

Inside diameter

86mm

Overall length

64mm

Fixed hole distance

9mm

Base height

11mm

Bearing seat height

15mm

Center height

25.5mm

Bearing height

17mm

Distance from oil hole to ground

31mm

Total width

12.7mm

channel distance

M10

Bolt size

≈m

0.5Kg

weight

UC 204-12

Bearing Type

F204-12

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

0.750in

Inside diameter

3.386in

Overall length

2.520in

Fixed hole distance

0.354in

Base height

0.433in

Bearing seat height

0.591in

Center height

1.004in

Bearing height

0.669in

Distance from oil hole to ground

1.220in

Total width

0.500in

channel distance

M10

Bolt size

≈m

0.5Kg

weight

UC 204-12

Bearing Type

F204-12

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
