UCF 205-14 F

F-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

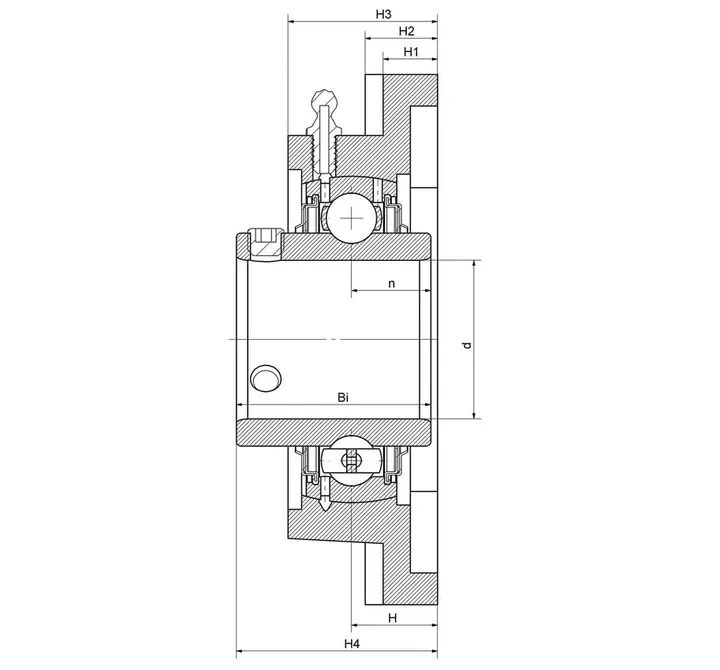

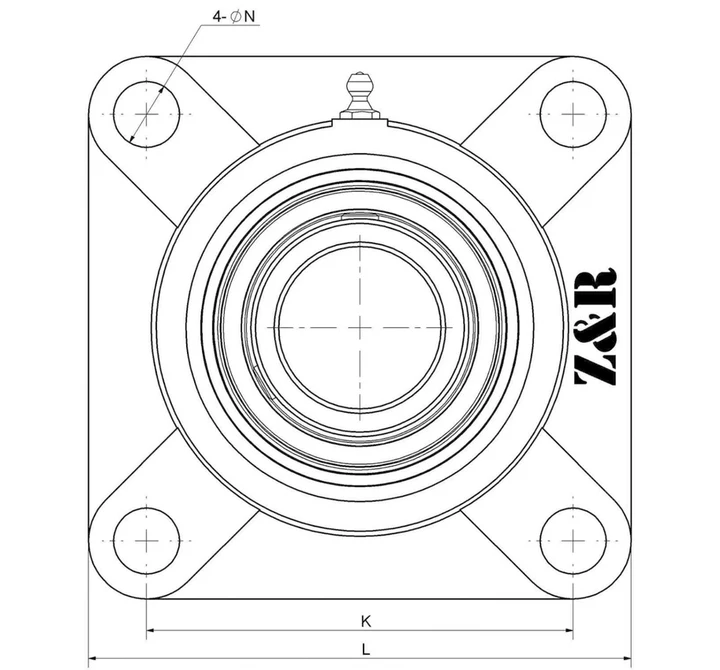

Main dimensions and performance parameters

20.6357mm

Inside diameter

95mm

Overall length

70mm

Fixed hole distance

11mm

Base height

13mm

Bearing seat height

16mm

Center height

27mm

Bearing height

18mm

Distance from oil hole to ground

37mm

Total width

14.3mm

channel distance

M10

Bolt size

≈m

0.68Kg

weight

UC 205-14

Bearing Type

F205-14

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

0.812in

Inside diameter

3.740in

Overall length

2.756in

Fixed hole distance

0.433in

Base height

0.512in

Bearing seat height

0.630in

Center height

1.063in

Bearing height

0.709in

Distance from oil hole to ground

1.457in

Total width

0.563in

channel distance

M10

Bolt size

≈m

0.68Kg

weight

UC 205-14

Bearing Type

F205-14

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
