UCF 206 F

F-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

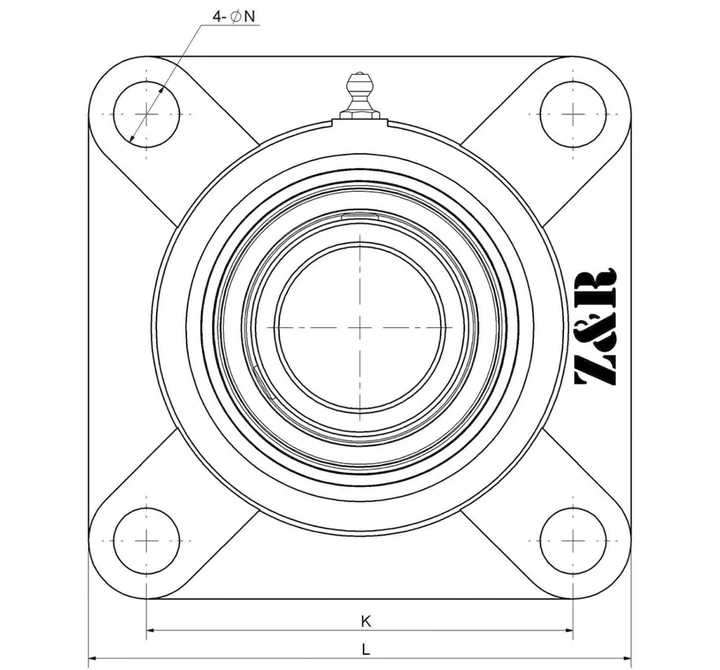

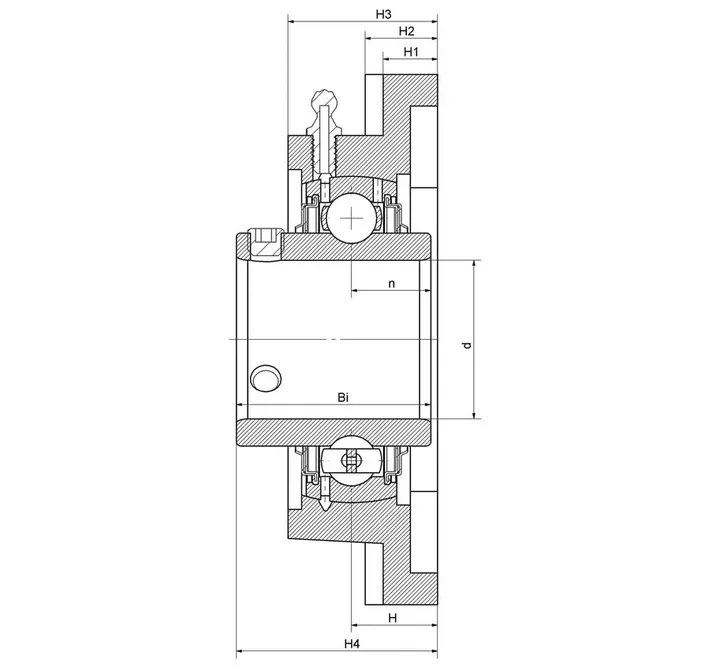

Main dimensions and performance parameters

30mm

Inside diameter

108mm

Overall length

83mm

Fixed hole distance

11mm

Base height

14mm

Bearing seat height

18mm

Center height

31mm

Bearing height

20.5mm

Distance from oil hole to ground

38.1mm

Total width

15.9mm

channel distance

M10

Bolt size

≈m

0.93Kg

weight

UC 206

Bearing Type

F206

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

1.181in

Inside diameter

4.252in

Overall length

3.268in

Fixed hole distance

0.433in

Base height

0.551in

Bearing seat height

0.709in

Center height

1.220in

Bearing height

0.807in

Distance from oil hole to ground

1.500in

Total width

0.626in

channel distance

M10

Bolt size

≈m

0.93Kg

weight

UC 206

Bearing Type

F206

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
