UCF 208-24 F

F-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

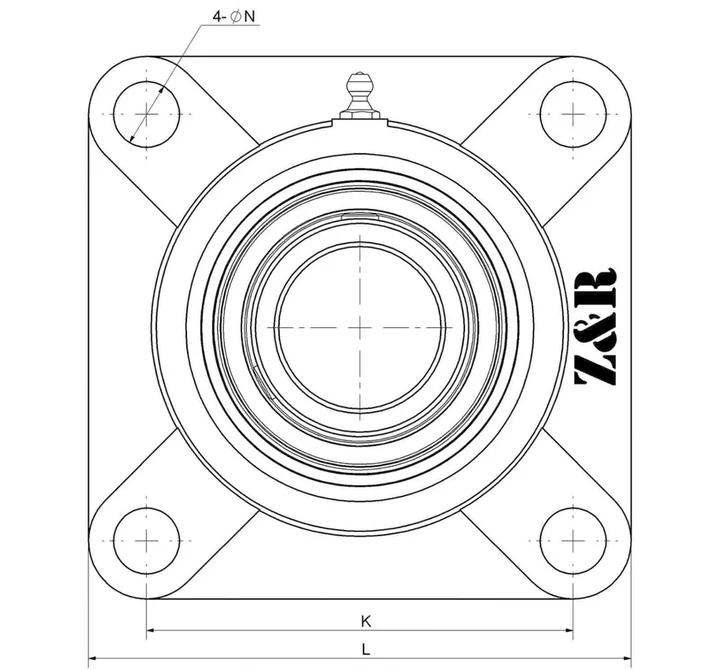

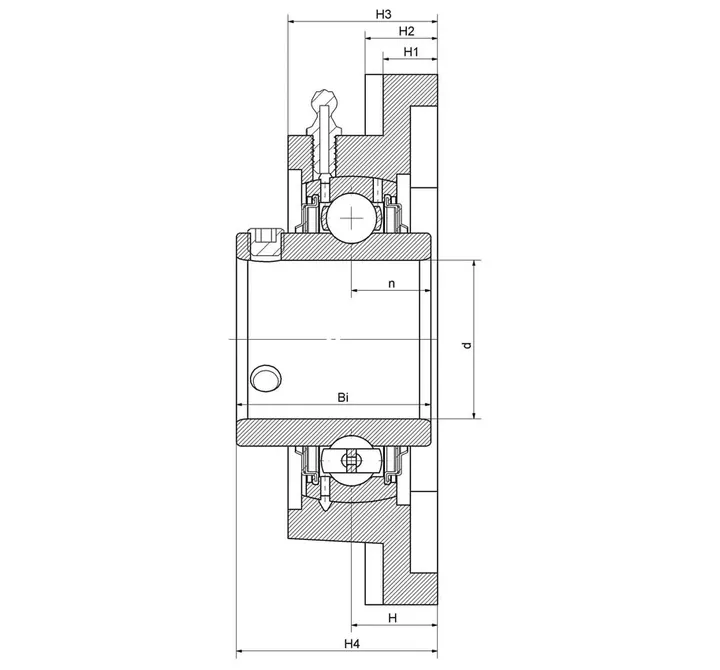

Main dimensions and performance parameters

38.1mm

Inside diameter

130mm

Overall length

102mm

Fixed hole distance

13mm

Base height

16mm

Bearing seat height

21mm

Center height

36mm

Bearing height

24.9mm

Distance from oil hole to ground

49.2mm

Total width

19mm

channel distance

M12

Bolt size

≈m

1.48Kg

weight

UC 208-24

Bearing Type

F208-24

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

1.500in

Inside diameter

5.118in

Overall length

4.016in

Fixed hole distance

0.512in

Base height

0.630in

Bearing seat height

0.827in

Center height

1.417in

Bearing height

0.980in

Distance from oil hole to ground

1.937in

Total width

0.748in

channel distance

M12

Bolt size

≈m

1.48Kg

weight

UC 208-24

Bearing Type

F208-24

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
