UCF 210 F

F-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

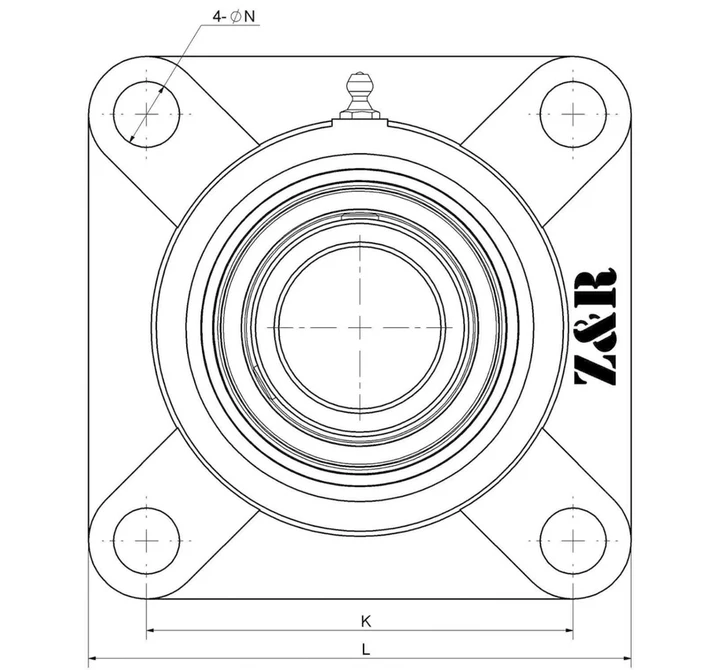

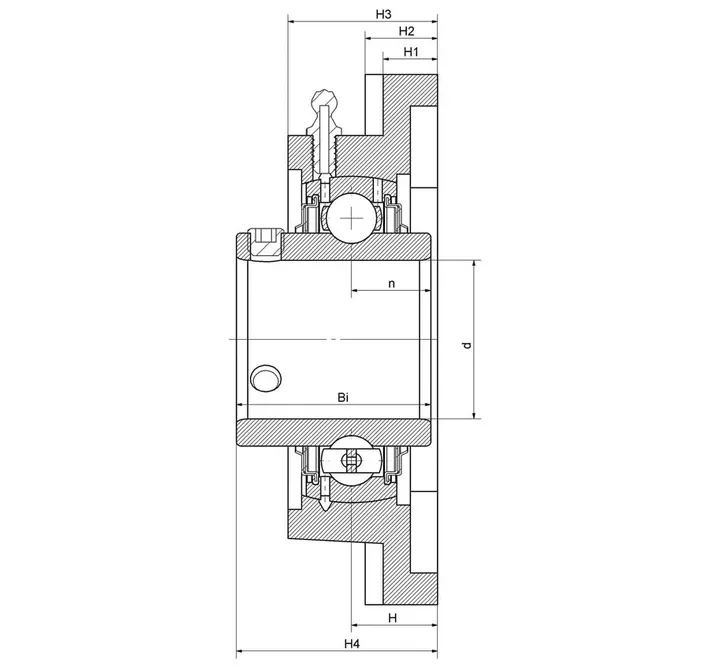

Main dimensions and performance parameters

50mm

Inside diameter

143mm

Overall length

111mm

Fixed hole distance

14mm

Base height

18mm

Bearing seat height

22mm

Center height

40mm

Bearing height

26.2mm

Distance from oil hole to ground

51.6mm

Total width

19mm

channel distance

M16

Bolt size

≈m

2.04Kg

weight

UC 210

Bearing Type

F210

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

1.969in

Inside diameter

5.630in

Overall length

4.370in

Fixed hole distance

0.551in

Base height

0.709in

Bearing seat height

0.866in

Center height

1.575in

Bearing height

1.031in

Distance from oil hole to ground

2.031in

Total width

0.748in

channel distance

M16

Bolt size

≈m

2.04Kg

weight

UC 210

Bearing Type

F210

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
