UCF 211-32 F

F-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

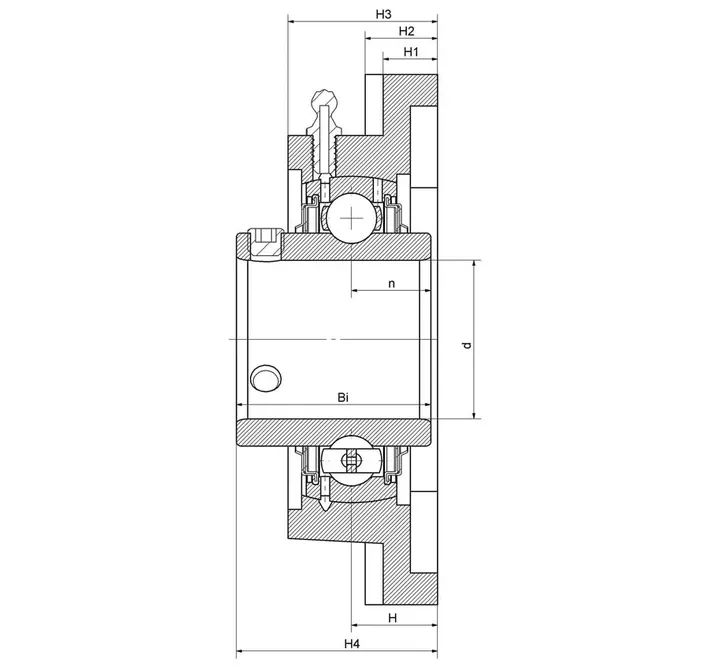

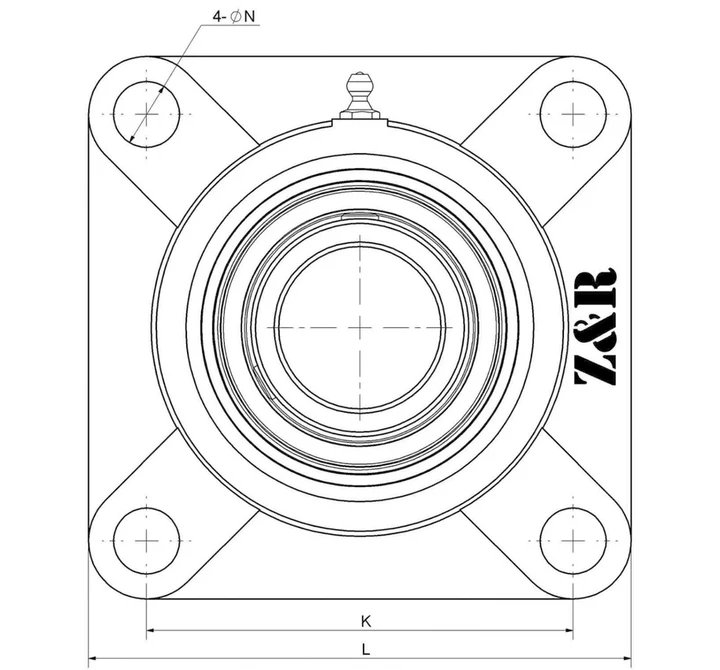

Main dimensions and performance parameters

50.8mm

Inside diameter

162mm

Overall length

130mm

Fixed hole distance

16mm

Base height

20mm

Bearing seat height

25mm

Center height

43mm

Bearing height

29.8mm

Distance from oil hole to ground

55.6mm

Total width

22.2mm

channel distance

M16

Bolt size

≈m

2.95Kg

weight

UC 211-32

Bearing Type

F211-32

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

2.000in

Inside diameter

6.378in

Overall length

5.118in

Fixed hole distance

0.630in

Base height

0.787in

Bearing seat height

0.984in

Center height

1.693in

Bearing height

1.173in

Distance from oil hole to ground

2.189in

Total width

0.874in

channel distance

M16

Bolt size

≈m

2.95Kg

weight

UC 211-32

Bearing Type

F211-32

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
