UCF 212-36 F

F-type bearing housing units, Cast iron housing, Set screw locking spherical ball bearing, F type seal

Model exchange

OEM

Product information

Technical information

CAD

Download

Reduce

Amplify

Reduce

Amplify

Unit display /

Metric system

British system

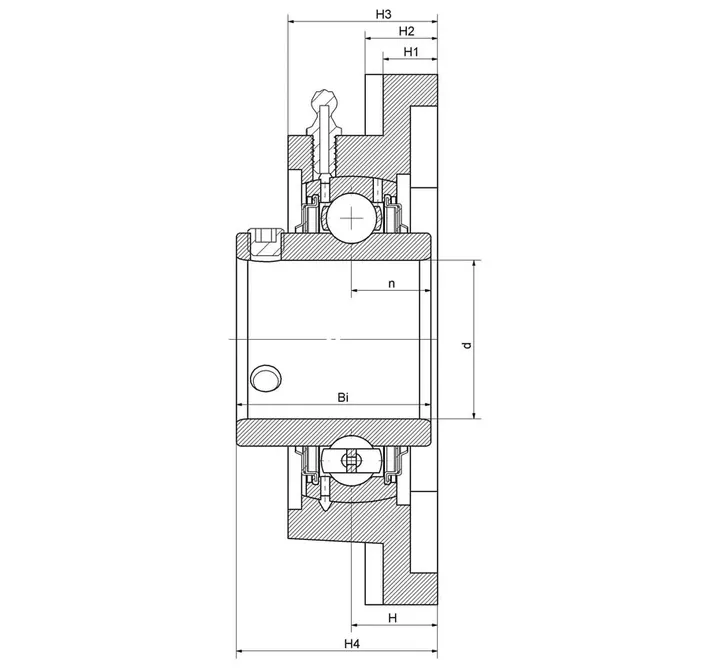

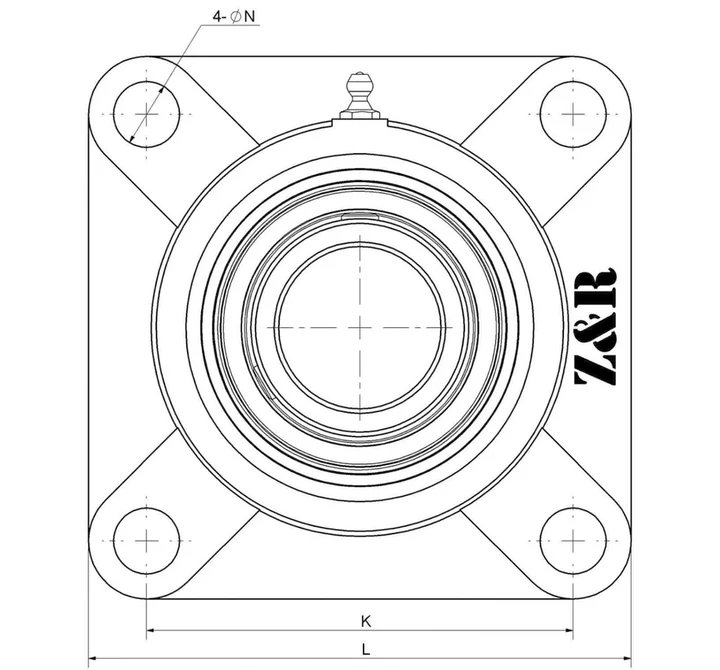

Main dimensions and performance parameters

57.15mm

Inside diameter

175mm

Overall length

143mm

Fixed hole distance

16mm

Base height

20mm

Bearing seat height

29mm

Center height

48mm

Bearing height

34.3mm

Distance from oil hole to ground

65.1mm

Total width

25.4mm

channel distance

M16

Bolt size

≈m

3.06Kg

weight

UC 212-36

Bearing Type

F212-36

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

2.250in

Inside diameter

6.890in

Overall length

5.630in

Fixed hole distance

0.630in

Base height

0.787in

Bearing seat height

1.142in

Center height

1.890in

Bearing height

1.350in

Distance from oil hole to ground

2.563in

Total width

1.000in

channel distance

M16

Bolt size

≈m

3.06Kg

weight

UC 212-36

Bearing Type

F212-36

Bearing seat model

M6*1

Oil injection hole

Assembly torque

HT200

Bearing seat material

Download this product

Download the product feature description

Your current product features

Sealing method

Lubrication method for outer ring

GV3

Locking method

Set screw locking

Tightening screw style

Assembly method

Grease

Shell Gadus S2 V100 2

Outer Ring Style

spherical surface

Layer

No processing
